Externally Mounted Tank Contents Monitoring System

Newly introduced by LeeSan is the Gobius C, a Micro Radar tank contents monitoring system.

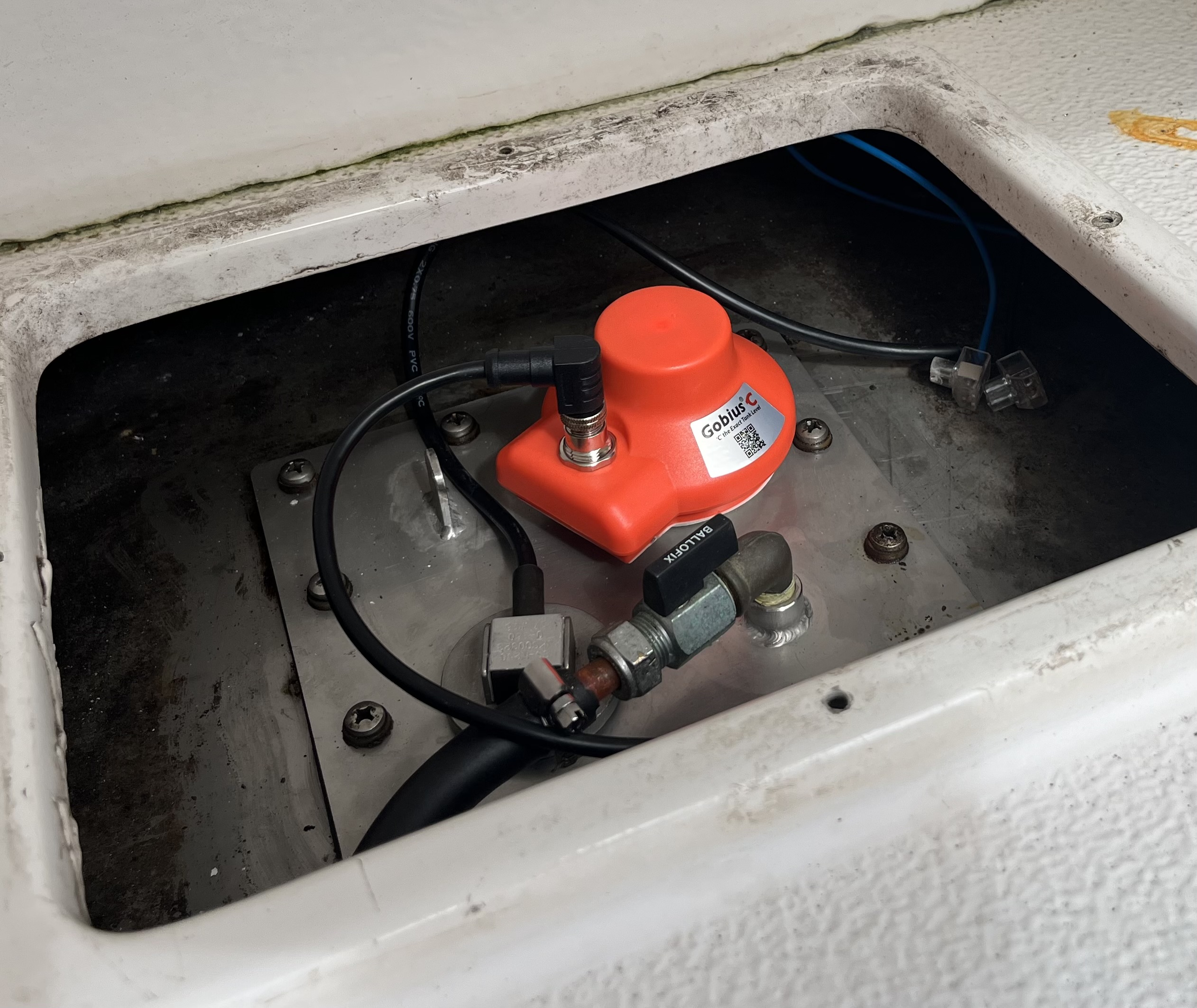

This clever, externally top mounted system has been designed to provide users with exact and continuous level and volume data of contents, regardless of the geometry of the tank.

Two versions are available. The Analogue unit is ideal for connecting to an existing analogue system where it can be used for monitoring contents and switching equipment such as pumps on and off.

The more sophisticated Digital system can be linked to an industry standard NMEA 2000 interface to enable it to control Multi-Functional Displays and Smart Devices.

Eliminating guesswork, the simple-to-install, mess-free, plug-and-play system is able to precisely and accurately measure black water, grey water, fresh water, and even fuels such as diesel and petrol tank contents.

Taking around 15 minutes to fit and set up via a mobile phone, it features stepless calibration from 0-100% and provides wireless monitoring directly to any smartphone.

The sensor size is just 65 mm high x 90 mm wide and works with tanks from a maximum depth of 2 meters (78 inches) to a minimum of 0.2 meters (7.8 inches)

For plastic and fibreglass tanks, the sensor is mounted with pre-installed 3M tape. For metal tanks, a hole (min. 50 mm) is required to be able to measure correctly.

Conveniently, the new Gobius C Adapter is compatible with the standard hole that is used for KUS, Wema’s and other tank gauges (44 mm in diameter).

So, no more clogged sliders or jammed floats, just continuous and accurate measurement and peace of mind!
